Type:

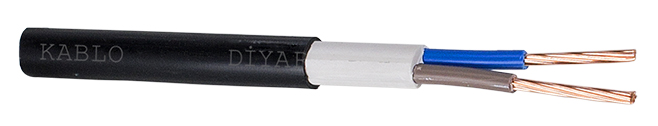

NYY
YVV
Standards:
IEC 60502-1
VDE 0271
Technical Specifications:
Rated Voltage (Uo/U): 0,6/1 [kv]
Max. Operating Temperature: 70 °C
Used Materials:
Copper (Cu), Stranded Wires – [Conductor]
Polyvinyl Chloride (PVC) – [Insulator]
Polyvinyl Chloride (PVC) – [Filling]
Polyvinyl Chloride (PVC) – [Sheath (Jacket)]
Size and Electrical Specifications:
| Nominal Cross-Section (mm²) |
Outer Diameter (mm) |
Electrical Resistance at 20℃ (ohm/km) |
Current Carrying Capacity / in ground (A) |
Current Carrying Capacity / in air (A) |
| 2×1,5 | 10,5 | 12,1 | 32 | 22 |
| 2×2,5 | 11,5 | 7,41 | 42 | 30 |
| 2×4 | 13 | 4,61 | 52 | 40 |
| 2×6 | 14 | 3,08 | 66 | 50 |
| 2×10 | 16 | 1,83 | 90 | 69 |
| 2×16 | 18 | 1,15 | 115 | 92 |
| 2×25 | 22 | 0,727 | 150 | 118 |
| 2×35 | 24,5 | 0,524 | 181 | 145 |
| 2×50 | 27,5 | 0,387 | 215 | 176 |
| 2×70 | 31 | 0,268 | 264 | 224 |
| 2×95 | 35,5 | 0,193 | 317 | 271 |
| 2×120 | 39 | 0,153 | 360 | 314 |
| 3×1,5 | 11 | 12,1 | 27 | 19 |
| 3×2,5 | 12 | 7,41 | 36 | 25 |
| 3×4 | 14 | 4,61 | 47 | 34 |
| 3×6 | 15 | 3,08 | 59 | 43 |
| 3×10 | 17,5 | 1,83 | 79 | 59 |
| 3×16 | 20 | 1,15 | 102 | 79 |
| 3×25 | 24 | 0,727 | 128 | 106 |
| 3×35 | 26 | 0,524 | 157 | 131 |
| 3×50 | 29,5 | 0,387 | 185 | 159 |
| 3×70 | 33,5 | 0,268 | 228 | 202 |
| 3×95 | 38 | 0,193 | 275 | 244 |
| 3×120 | 42 | 0,153 | 313 | 282 |
| 4×1,5 | 12 | 12,1 | 27 | 19 |
| 4×2,5 | 13 | 7,41 | 36 | 25 |
| 4×4 | 15 | 4,61 | 47 | 34 |
| 4×6 | 16 | 3,08 | 59 | 43 |
| 4×10 | 19 | 1,83 | 79 | 59 |
| 4×16 | 21 | 1,15 | 102 | 79 |
| 4×25 | 26 | 0,727 | 128 | 106 |
| 4×35 | 28,5 | 0,554 | 157 | 131 |
| 4×50 | 33 | 0,386 | 185 | 159 |
| 4×70 | 37,5 | 0,272 | 228 | 202 |
| 4×95 | 42,5 | 0,206 | 275 | 244 |
| 4×120 | 46,5 | 0,161 | 313 | 282 |
